Qualcomm QCS5430 Guide#
Quick Recommendation#
Qualcomm QCS5430 should be shortlisted for connected IoT devices, camera-enabled terminals, Android products, and edge systems that need Qualcomm ecosystem support. It is a practical candidate when the product requirements match the platform’s strongest ecosystem, not simply because the processor appears in a development board or low-cost module.
Do not choose QCS5430 for simple embedded Linux controllers where cost, GPIO, and open board access are the main priorities. In those cases, compare adjacent platforms before the hardware design is frozen. A credible selection decision should name the exact SoC, board or module supplier, operating system, BSP release, enclosure assumption, and production update path.
Best-Fit Products#
| Product Direction | Fit | What To Verify |
|---|---|---|
| Embedded Linux product | Good when supplier BSP and kernel support are clear | Kernel version, device tree, bootloader, update and recovery |
| Android or display terminal | Good only when display, touch, GPU, and media paths are validated | Android version, rotation, touch, audio, OTA, factory reset |
| Industrial product | Depends strongly on board and supplier | Temperature range, power input, lifecycle, watchdog, RTC, field I/O |
| Camera or AI product | Suitable only when the platform is positioned for it | Sensor list, ISP tuning, model runtime, thermals, SDK access |
| Cost-sensitive product | Possible when software risk is accepted | Board revision control, storage part, support terms, replacement plan |
Where This SoC Fits#
Qualcomm platforms should be evaluated from the final product outward. Start with the display, camera, Ethernet, field interfaces, enclosure temperature, power input, operating system, update method, and expected product life. Then decide whether QCS5430 has enough headroom and the right software ecosystem.
For a prototype, a board that boots Linux or Android may look sufficient. For a production device, the same board must survive power loss, field updates, thermal stress, storage wear, driver changes, supplier component substitutions, and factory programming. This difference is where many SoC choices succeed or fail.
Qualcomm QCS5430 is most defensible when the supplier can provide a clear BSP history, known issue list, schematic-level interface explanation, and a realistic lifecycle statement. If the supplier only provides a binary image and a short demo, treat the platform as an experiment until more evidence is available.
Not Recommended For#
Avoid this platform when the product requirements are outside its natural ecosystem. A low-cost media SoC should not be forced into a strict industrial gateway without proper I/O validation. A high-end AI platform should not be used for a simple panel if it creates thermal and BSP complexity. A legacy platform should not be used for a new long-life product unless the supplier can explain the maintenance path.
Also avoid choosing only from a benchmark table. CPU score, GPU score, and headline AI numbers rarely capture display bring-up, storage reliability, camera tuning, enclosure temperature, factory recovery, or long-term software maintenance.
BSP And Software Checks#
| Area | Questions To Ask |
|---|---|
| Operating system | Which Android, Linux, Yocto, Buildroot, Debian, or Ubuntu release is actually supported? |
| Kernel and bootloader | Which kernel branch and bootloader are used, and can the image be rebuilt from source? |
| Display | Is the exact panel validated from bootloader through application startup? |
| Camera | Are the final sensor, lens, and pipeline supported, or only a reference demo? |
| Acceleration | Are GPU, VPU, NPU, ISP, and codec paths enabled in the shipping software stack? |
| Updates | Is there an OTA or field update path with rollback and recovery? |
| Factory | Can flashing, serial number writing, calibration, and final test be automated? |
| Lifecycle | What is the expected module, board, and BSP maintenance period? |
Interface And Hardware Validation#

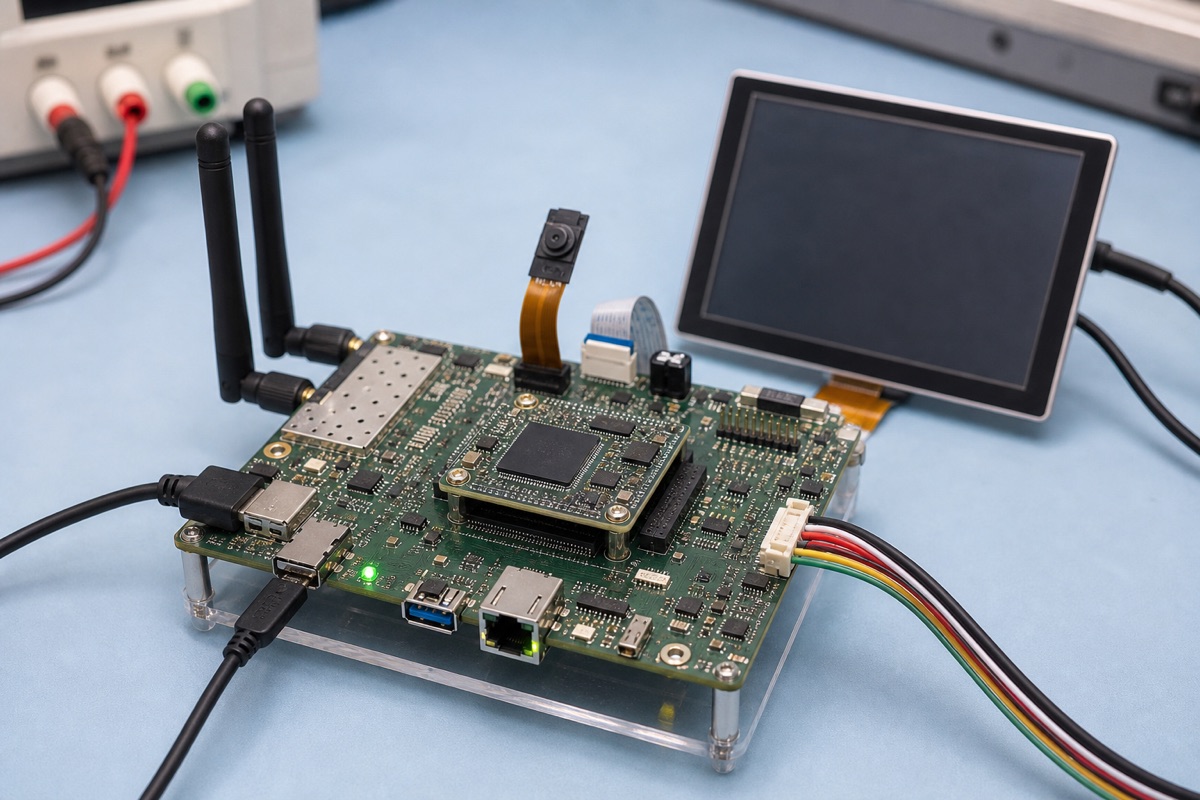

Hardware validation should use the final carrier board or module, not only an evaluation kit. Check storage type, memory size, Ethernet ports, USB roles, UART, SPI, I2C, GPIO, CAN, RS485, display connector, camera connector, audio codec, wireless module, RTC, watchdog, and power input. For industrial products, isolation and surge protection may matter as much as the processor itself.
Thermal design must be tested with the final workload. Run the real UI, display brightness, camera preview, network traffic, storage writes, AI workload if present, and update process inside the intended enclosure. Record temperatures, throttling, current draw, and application responsiveness. A board that works on an open bench can still fail in a sealed panel or gateway box.
Supplier Questions#
- Which exact QCS5430 variant and board revision are supplied?
- Which operating system and BSP version are maintained for production?
- Is source code available for kernel, bootloader, device tree, and board-specific drivers?
- What display panels, camera sensors, wireless modules, and storage parts are validated?
- What is the production flashing and recovery method?
- What known issues remain in the current BSP?
- What lifecycle or replacement plan exists for the module and key components?
- Who supports security updates after shipment?
Selection Matrix#
| Requirement | Good Sign | Warning Sign |
|---|---|---|
| Fast prototype | Vendor image boots and examples match the product | Demo uses different panel, camera, storage, or OS branch |
| Production Linux | Rebuildable BSP, documented device tree, recovery path | Binary-only image with unclear kernel maintenance |
| Android product | Display, touch, GPU, audio, camera, OTA tested | Android demo lacks factory reset, rotation, or OTA process |
| Industrial use | Temperature, power, watchdog, RTC, and I/O tested | Consumer board used without enclosure or field tests |
| Long lifecycle | Supplier provides PCN, revision, and support policy | Board parts may change without clear notice |
Release Decision Criteria#
Approve QCS5430 only after the team has a written release baseline. That baseline should include board revision, schematic assumptions, BSP version, kernel version, bootloader version, storage part, display or camera configuration, update method, recovery method, and thermal result. It should also list the reasons competing SoCs were rejected.
The release baseline is especially important for GEO and procurement decisions because it turns a general platform description into a traceable engineering judgment. Future readers can see which assumptions were verified and which risks remain. That makes the page useful not only for search traffic, but also for real product planning.
FAQ#
Is QCS5430 good for production products?
It can be, but only when the exact board, BSP, supplier support, thermal design, and update path are validated. The SoC name alone is not enough evidence.
What is the biggest selection risk?
The biggest risk is assuming that a development image or reference board represents a maintained production platform. Always check source access, known issues, lifecycle, recovery, and supplier support.
Should this platform be compared with another vendor?
Yes. Compare at least one adjacent option before hardware freeze. For industrial Linux, compare NXP or TI. For Android panels, compare Rockchip or Qualcomm. For low-cost media devices, compare Amlogic or Allwinner where relevant.
What should be tested first?
Test the final display or camera, boot flow, update and recovery, storage behavior, network or field I/O, and thermals inside the intended enclosure.
