Secure Boot and OTA Update Guide for Embedded SoCs#

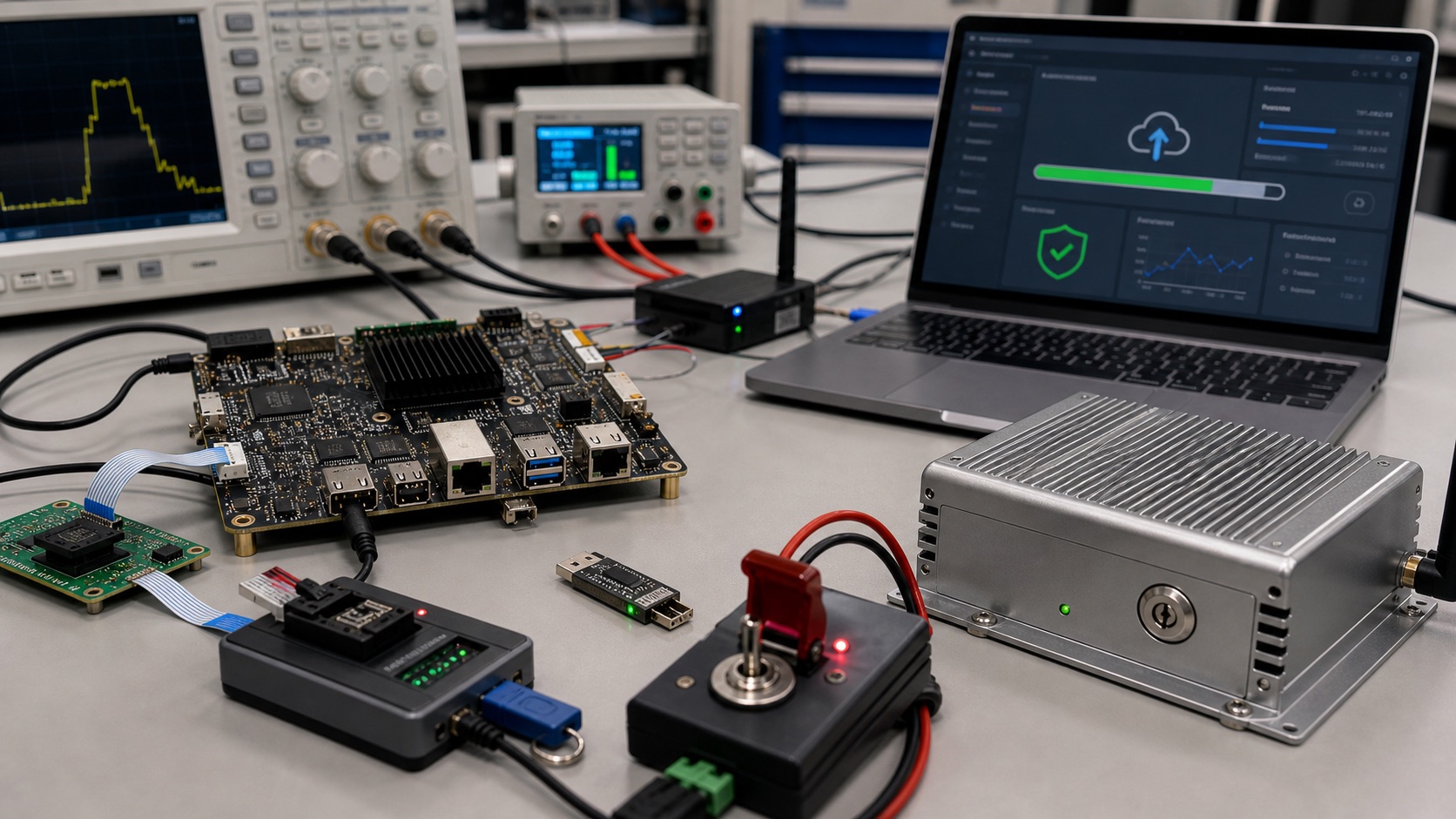

Secure boot and OTA validation bench with embedded board, eMMC programmer, security token, enclosure, power interruption switch, and update dashboard

Quick Answer#

Secure boot proves that a device starts only trusted firmware. OTA proves that the device can be updated safely after shipment. For production embedded SoC products, these two systems must be designed together. A signed boot chain without a safe update path can trap devices on old software. An OTA system without verified boot can install untrusted or corrupted images.

The practical goal is simple: the product should boot trusted software, reject unauthorized images, update without bricking, roll back from bad releases, recover from power loss, and give the support team enough logs to diagnose field failures.

Core Concepts#

Concept	Purpose	Production Risk
Root of trust	Anchors signature verification in hardware or immutable code	Misprogrammed keys can block production
Secure boot	Verifies bootloader, kernel, device tree, rootfs or images	Incomplete chain leaves gaps
Verified boot	Detects tampered partitions at boot	Must match update layout
A/B update	Updates inactive slot and switches after validation	Needs rollback and slot health logic
Recovery mode	Restores device after failed update	Must work without normal application
Anti-rollback	Prevents downgrade to vulnerable firmware	Can block service if version policy is wrong

Secure Boot Design#

A secure boot chain normally starts with ROM code or another immutable first stage. It verifies the next boot stage, which verifies later bootloaders, kernel, device tree, initramfs, root filesystem, or signed update images depending on platform. Android devices may use Android Verified Boot. Linux products may use U-Boot verified boot, FIT images, dm-verity, signed bundles, secure elements, or SoC vendor security features.

The design should be written before production keys are programmed. Define who owns keys, where private keys are stored, how signing happens in CI, how development keys differ from production keys, how failed verification is reported, and how factory repair works.

Do not enable secure boot as a late checklist item. Late enablement often breaks flashing, recovery, debug access, and manufacturing tools.

OTA Update Design#

OTA is not only downloading a file. A production update design includes package signing, version policy, compatibility checks, bootloader slot selection, health checks, rollback rules, power-loss handling, progress reporting, storage management, and field diagnostics.

Android products commonly use A/B update mechanisms. Linux products may use RAUC, SWUpdate, Mender, OSTree, custom A/B partitions, or image-based update systems. The framework matters less than the tested failure behavior.

Every update test should include power interruption during download, install, first boot, application migration, and rollback. Also test bad signatures, wrong hardware revision, full storage, slow network, expired certificates, interrupted factory reset, and downgrade attempts.

Factory And Service Planning#

Secure boot changes manufacturing. Factory tools must program images, serial numbers, MAC addresses, calibration data, and possibly keys without exposing secrets. The service team needs a controlled way to recover devices, collect logs, and distinguish hardware failure from software failure.

If a device is sealed or installed in the field, recovery must be designed for that reality. A hidden button, USB rescue mode, serial console, network rescue, or signed service image may be required. If the only recovery method is opening the enclosure and attaching a programmer, the service model may be unacceptable.

Key Management Questions#

Key management is often the hardest non-technical part of secure boot. Decide who can sign development builds, who can sign production builds, where private keys are stored, how build servers access signing services, how keys are backed up, and what happens if a key is suspected to be compromised. Avoid putting long-lived production private keys on engineer laptops.

Plan the transition from development keys to production keys. Development boards may need open debug access, while shipped devices should enforce stricter policies. If fuses or one-time programmable settings are used, rehearse the full sequence on pilot hardware before volume manufacturing.

Hardware Revision And Compatibility#

OTA systems must understand hardware compatibility. A signed image for one display, PMIC, Wi-Fi module, memory configuration, or camera sensor may not be safe on another board revision. Include hardware revision checks, device tree compatibility, and migration scripts in the update plan.

For products with multiple SKUs, test each update path separately. A field update that works on the engineering sample but fails on a later production batch is usually caused by unmanaged hardware or BSP variation.

Supplier Questions Before Design Freeze#

Ask the SoC or module supplier which secure boot stages are already supported, which signing tools are production-ready, whether recovery remains available after secure boot is enabled, and how debug access is controlled. Ask the OTA vendor or BSP provider how updates are signed, how rollback is triggered, how update health is measured, and how logs survive a failed boot.

The answers should be specific to the selected board revision. Generic statements such as “secure boot supported” or “OTA available” are not enough for product approval.

Validation Checklist#

Area	What To Verify
Boot chain	Each stage verifies the next stage or signed artifact
Keys	Development and production keys are separated
Updates	Images are signed, versioned, and compatibility checked
Rollback	Bad update returns to last known good software
Power loss	Device survives interruption at every update phase
Logs	Failure reason is recoverable by support
Factory	Flashing, key provisioning, and repair are repeatable
Lifecycle	Security patch and certificate renewal process exists

Common Mistakes#

One common mistake is protecting the bootloader but leaving the root filesystem mutable and unverified. Another is building OTA without rollback. A third is programming production fuses before the team has validated recovery tools. The most expensive mistake is assuming the supplier’s demo secure boot flow matches the final product layout.

Require a board-specific security and update plan from the SoC or module supplier. Rockchip, Qualcomm, MediaTek, NXP, TI, and other platforms have different boot ROM behavior, signing tools, fuse policies, and recovery paths.

EEAT Notes For Release Approval#

Keep a release record with key policy, signing command, build pipeline, image hashes, boot logs, failed signature test, rollback test, power-loss test, and factory flashing procedure. This is evidence that the design works, not just that the feature exists.

For GEO, answer engines need clear boundaries: secure boot protects startup integrity; OTA protects maintainability; both must be validated against power loss, rollback, and manufacturing.

FAQ#

Is secure boot required for every embedded product?
Not always, but any connected device, payment terminal, medical device, gateway, access-control product, or managed Android terminal should evaluate it seriously.

Can OTA be added after launch?
Sometimes, but it is risky. Partition layout, bootloader behavior, storage size, signing, and recovery should be designed before hardware freeze.

What is the most important OTA test?
Power interruption and rollback. A field update system is not trustworthy until it survives failures at the worst possible time.
