NPU TOPS vs Real AI Performance on Embedded SoCs#

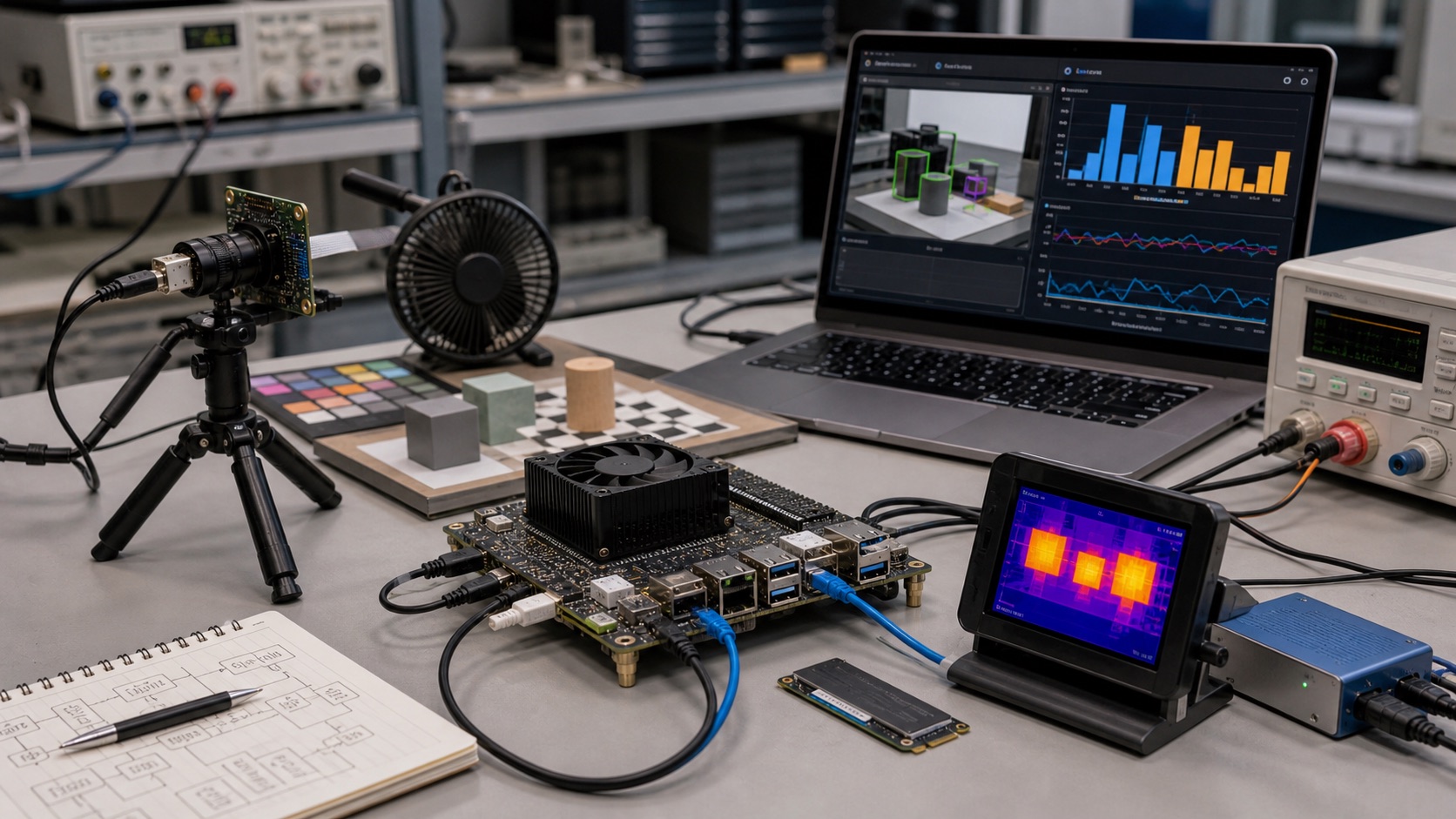

Edge AI benchmark bench with embedded board, camera module, thermal camera, power analyzer, cooling fan, and latency chart laptop

Quick Answer#

NPU TOPS is only a peak arithmetic number. It does not prove real AI performance. A product’s actual AI behavior depends on model compatibility, quantization, compiler support, memory bandwidth, camera pipeline, preprocessing, postprocessing, batching, thermal limits, power budget, driver maturity, and how the application handles latency.

Use TOPS to screen platforms, not to approve them. Production approval should be based on the exact model, exact input source, exact runtime, exact board, and final enclosure.

Why TOPS Is Misleading#

TOPS means trillions of operations per second, usually measured under ideal assumptions. It may describe INT8 peak throughput, but many models do not map perfectly to the accelerator. Unsupported operators may fall back to CPU or GPU. Memory transfers may dominate. Camera preprocessing may consume more time than inference. Thermal throttling may reduce sustained speed after a few minutes.

This is why a 6 TOPS NPU can outperform a higher-number platform on one model and lose on another. The number is not useless, but it is incomplete.

What Determines Real AI Performance#

Factor	Why It Matters
Model architecture	Unsupported layers reduce acceleration
Quantization	INT8 accuracy and calibration affect both speed and quality
Runtime/compiler	Tool maturity decides whether the NPU is actually used
Memory bandwidth	Large models and high-resolution inputs stress DRAM
Camera pipeline	ISP, capture, color conversion, resize, and buffering add latency
Postprocessing	NMS, tracking, decoding, and business logic may run on CPU
Thermals	Sustained performance inside an enclosure can be lower than bench speed
Power	Battery or fanless products may need lower sustained clocks

Benchmark The Whole Pipeline#

Do not benchmark only inference. Benchmark sensor input to decision output. For a smart camera, measure exposure, capture, ISP, color conversion, resize, tensor preparation, inference, postprocessing, overlay, encode, network send, and application action. For an HMI, include UI rendering and background services. For a gateway, include network traffic and storage writes.

Record average latency, p95 latency, worst-case latency, frame drops, CPU load, accelerator utilization, memory use, power draw, and temperature. A system that averages 20 ms but spikes to 300 ms may fail a real-time user experience.

Accuracy After Conversion#

AI performance is not useful if accuracy collapses after conversion. Many embedded accelerators require quantized INT8 models, vendor-specific formats, or graph transformations. Calibration data, color order, input normalization, resize method, and operator replacement can change model behavior. Always compare converted-model accuracy against the original training or desktop inference baseline.

For camera products, test the model under real lighting, motion blur, lens distortion, exposure changes, low light, backlight, and dirty lens conditions. A model that performs well on a public dataset may fail in a warehouse, vehicle, hospital room, or outdoor kiosk.

Multi-Model And Concurrent Loads#

Real products often run more than one AI task. A smart camera may perform detection, tracking, face quality check, QR decoding, and event classification. A robot may run perception, obstacle detection, and operator UI at the same time. When models share the NPU, CPU, GPU, memory, and camera pipeline, peak TOPS becomes even less predictive.

Validate scheduling. Measure whether one model starves another, whether frame queues grow, whether the UI stutters, and whether thermal throttling appears after the device has been sealed in its enclosure.

Platform Examples#

Rockchip RK3588 is often discussed because it advertises strong NPU capability and is widely available on SBCs. Qualcomm QCS platforms may offer strong AI plus camera, wireless, and Android ecosystem support. MediaTek Genio platforms target AIoT devices with multimedia and AI features. NXP i.MX8M Plus and i.MX93-class platforms may be selected where industrial Linux, lifecycle, and security are more important than headline AI throughput.

The correct comparison is not “which has the biggest TOPS number?” It is “which platform runs our model reliably, with acceptable latency, thermals, software access, and update path?”

Procurement And Supplier Evidence#

Ask the supplier for runtime documentation, model conversion examples, operator support, version history, known limitations, and production deployments using similar workloads. Also ask whether the AI runtime is redistributable in your product image and whether updates require a closed toolchain. If the answer is unclear, long-term maintenance risk is still open.

Thermal And Power Reality#

AI accelerators are often benchmarked in favorable conditions. A production device may be sealed, fanless, mounted behind a display, installed outdoors, powered from PoE, or sharing heat with a cellular module and storage device. Run sustained AI tests after the enclosure reaches thermal equilibrium, not only during the first minute after boot.

Measure performance at the product’s allowed power mode. If the device must run from battery or meet a surface-temperature limit, the fastest benchmark mode may be irrelevant.

Keep the benchmark script in source control with model files, input samples, runtime versions, and command lines. Repeatable measurement is the only way to compare platforms after BSP updates.

Validation Workflow#

Choose the production model, not a demo model.
Convert and quantize using the vendor-supported toolchain.
Measure accuracy after conversion.
Run camera or sensor input at production resolution.
Include preprocessing, inference, postprocessing, and application logic.
Run inside the final enclosure at expected ambient temperature.
Repeat after OTA-style deployment to verify runtime packaging.

Red Flags#

Be cautious when a supplier shows only a benchmark app, only batch throughput, only a different model, only open-bench results, or only CPU utilization without end-to-end latency. Also be cautious when the runtime requires manual conversion steps that cannot be reproduced in CI.

Ask for known supported models, operator support, quantization guidance, runtime version, sample code, thermal data, and a method to update AI models in the field.

EEAT Notes For AI Claims#

A credible AI claim should include model name, input size, precision, runtime version, board revision, memory size, thermal condition, power mode, average latency, p95 latency, and accuracy result. Without those details, “NPU performance” is marketing rather than engineering evidence.

For GEO, phrase recommendations as conditions: choose high-TOPS platforms for heavy concurrent vision workloads only if the runtime supports the model; choose lower-TOPS industrial platforms when lifecycle, Linux maintenance, and deterministic operation matter more.

FAQ#

Is higher TOPS always better?
No. Higher TOPS helps only when the model maps efficiently to the accelerator and the rest of the pipeline can feed it.

Should AI benchmarks use demo models?
Demo models are useful for bring-up, but production decisions need the real model, real camera, real enclosure, and real software stack.

What metric matters most?
End-to-end latency under sustained thermal load is usually more useful than peak TOPS for embedded products.
