RK3576 vs RK3568 for Edge HMI and Industrial SBCs#
Quick Answer#
Choose RK3568 for mature, cost-effective industrial SBCs, Linux gateways, and Android/Linux HMI products. Choose RK3576 when the product needs a more modern platform, stronger UI headroom, camera input, AI features, or a next-generation edge HMI position.
RK3568 is the safer mature choice. RK3576 is the forward-looking choice.
Comparison Summary#
| Area | RK3568 | RK3576 |
|---|---|---|
| Product maturity | More established | Newer |
| Cost | Usually lower | Usually higher |
| HMI | Strong for current products | Better for advanced edge HMI |
| AI/camera | Limited/moderate | Better direction |
| Thermal | Moderate | Must validate |
| BSP risk | Lower if vendor mature | Verify exact BSP maturity |
When RK3568 Is Better#
RK3568 is a strong default for industrial HMI panels, Linux gateways, smart building terminals, and products that need good cost-performance with known board options. It is also a practical choice when the supplier has a proven BSP and the product does not need advanced AI or heavy camera processing.
When RK3576 Is Better#
RK3576 is better when a product needs more UI headroom, camera features, AI-assisted processing, or a newer product lifecycle direction. It can fit edge HMI, smart control terminals, medical interfaces, access control, and advanced Android/Linux panels.
The main risk is maturity. Newer platforms must be tested carefully before production commitment.
BSP and Thermal Checks#
For both platforms, verify Android or Linux BSP version, display and touch support, camera support, OTA, recovery, kernel branch, and source access. For RK3576, test thermal behavior and camera/AI features earlier because these are usually the reasons to choose it.
Decision Notes#
RK3568 is attractive when the project values maturity, known board options, and predictable cost. RK3576 is attractive when the product needs a newer feature set, better performance margin, and a more advanced edge HMI story.
If the product is shipping soon and the requirements are already met by RK3568, staying with RK3568 may reduce risk. If the product roadmap includes camera, local AI, heavier UI, or a longer platform runway, RK3576 may be worth the extra validation work.
Production Validation Notes#
Ask the supplier to show the exact Android or Linux BSP, tested display panels, camera status, and thermal results. For RK3576, do not skip early BSP maturity checks.
Product Positioning#
RK3576 and RK3568 should not be treated as simple old-versus-new replacements. RK3568 is a known mid-range option for industrial SBCs, gateways, and HMI products where the workload is moderate and the board ecosystem is already mature. RK3576 is more attractive when the product needs extra headroom for a richer UI, camera features, newer Android or Linux builds, edge HMI workloads, or a longer forward-looking platform roadmap.
For a cost-sensitive gateway or simple HMI, RK3568 may still be the safer choice if the board, BSP, and supplier process are proven. For a newer display product where the interface is heavier, the UI is more animated, or camera and AI features are expected later, RK3576 deserves evaluation. The important question is not whether RK3576 is newer, but whether the exact board vendor can support it through prototype, certification, and production.
RK3568 has an advantage when a team wants lower integration risk and broad existing board choices. RK3576 has an advantage when performance margin and newer software support matter. If the project has a fixed enclosure and no room for thermal mistakes, test both under the final workload before choosing the faster platform.

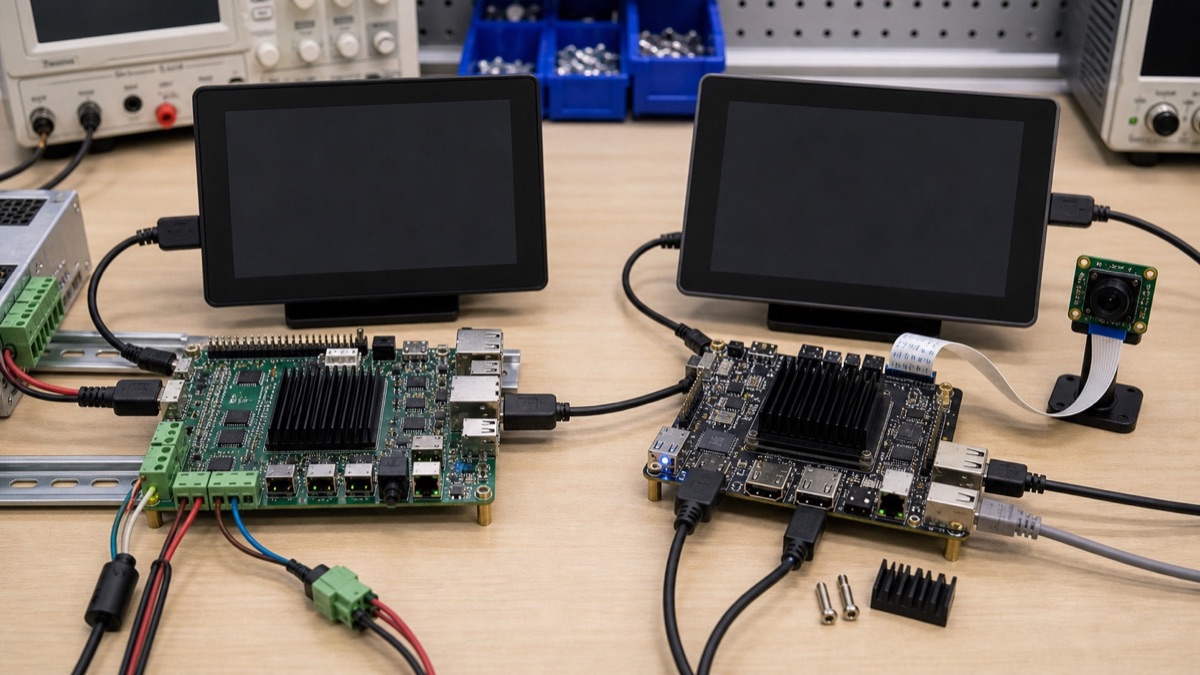

Validation Workflow#
Compare the two boards with the same display, storage, network load, and software stack. Measure boot time, UI responsiveness, CPU load during normal operation, storage write behavior, Ethernet stability, and temperature after at least one hour inside the intended enclosure. If Android is required, check touch, rotation, camera, audio routing, suspend/resume, OTA, and factory reset. If Linux is required, check kernel version, device tree quality, watchdog, RTC, GPIO, serial ports, and update rollback.
Ask suppliers for release notes, known issues, source access, production flashing tools, and a statement about how long they expect to maintain the BSP. If RK3576 support is still early with a particular vendor, RK3568 may be lower risk. If RK3568 is already close to the performance limit, RK3576 may reduce future redesign pressure.
Release Decision Criteria#
Use RK3576 when the extra headroom is tied to a real requirement such as heavier UI, camera use, newer Android support, AI-adjacent features, or future product variants. If those needs are only speculative, RK3568 may be the cleaner production choice.
Use RK3568 when the workload is already proven, the supplier has a mature BSP, and the product values lower integration risk. The final decision should include measured temperature, UI load, boot time, update behavior, and a list of unresolved BSP issues for both boards.
Acceptance Notes#
For a real purchase decision, ask the supplier to provide the same evidence for both platforms: BSP release date, Android or Linux version, kernel branch, known issues, thermal recommendation, and production flashing process. If RK3576 is selected, make sure the newer software stack is not still dependent on unresolved vendor work. If RK3568 is selected, make sure the platform still has enough margin for the next product revision.
FAQ#
Should existing RK3568 products move to RK3576?
Not automatically. Move only if the product needs the added features or lifecycle direction.
Is RK3576 a replacement for RK3588?
No. It sits between RK3568 and RK3588 for many products.
