MIPI CSI Camera Interface Guide for Embedded SoCs#

Quick Answer#

Use MIPI CSI when the product needs a built-in camera with low latency, compact cabling, and access to the SoC camera pipeline. For simple inspection or service cameras, USB camera modules may be easier. For production MIPI CSI designs, the real risk is not the connector. It is sensor driver support, ISP tuning, Android Camera HAL or Linux V4L2 integration, and long-run thermal behavior.

What MIPI CSI Solves#

MIPI CSI-2 is a camera interface used between image sensors and application processors. It is common in smart cameras, access control terminals, video intercoms, machine vision products, handheld terminals, robotics, and edge AI devices.

An SoC may advertise MIPI CSI support, but that does not prove that a specific camera module works. Camera integration depends on sensor model, lane count, clocking, device tree, power sequencing, driver support, ISP path, and user-space framework.

Camera Planning Checklist#

Android Camera Projects#

For Android panel PCs, access terminals, and smart cameras, the Camera HAL matters as much as the hardware interface. Ask the board supplier which Android version is supported, which sensors are already integrated, and whether camera preview, capture, rotation, sleep/wake, and OTA updates have been tested.

Do not accept a single demo app as proof. A production Android camera product needs repeatable camera behavior after reboot, suspend/resume, low-light conditions, and long-running preview.

Linux Camera Projects#

For embedded Linux, verify V4L2 driver status, media pipeline configuration, device tree, sensor controls, image format, timestamping, and application framework. If the final product uses OpenCV, GStreamer, Qt, or a custom AI pipeline, test that path early.

Linux can be more transparent than Android for debugging, but it also requires more engineering ownership.

When USB Camera Is Better#

USB cameras can be better when the product needs fast prototyping, replaceable camera modules, or a simple camera without deep ISP tuning. The tradeoff is usually larger connectors, higher power, less deterministic latency, and less control over the full image pipeline.

Supplier Questions#

• Which exact camera sensors are already supported?
• Is ISP tuning available?
• Is the driver included in the BSP source?
• Does Android Camera HAL work with the target sensor?
• Does Linux expose a stable V4L2 media graph?
• What is the tested cable length?
• Is there a factory calibration process?

Camera Integration Reality#

MIPI CSI support on a datasheet does not mean a camera product is ready. A working camera requires lane routing, sensor driver support, clock configuration, power sequencing, reset GPIOs, device tree or Android camera configuration, ISP tuning, exposure behavior, lens choice, and application pipeline integration. For Android products, the camera HAL can be the hardest part. For Linux products, V4L2 support, media controller topology, and userspace pipeline stability must be checked.

Camera integration is also strongly tied to the SoC vendor ecosystem. Rockchip boards may have practical camera demos, but production quality depends on the selected sensor and BSP provider. NXP i.MX8M Plus is often considered for vision products because camera and AI features are part of its positioning, but the exact module and sensor still need validation. Qualcomm QCS platforms can be strong for camera and AI products, but access to tuning tools, sensor support, and module vendor help must be clear before committing.

Do not choose a camera SoC only by lane count. The final product needs acceptable image quality, startup time, exposure stability, thermal behavior, and long-term software maintainability.

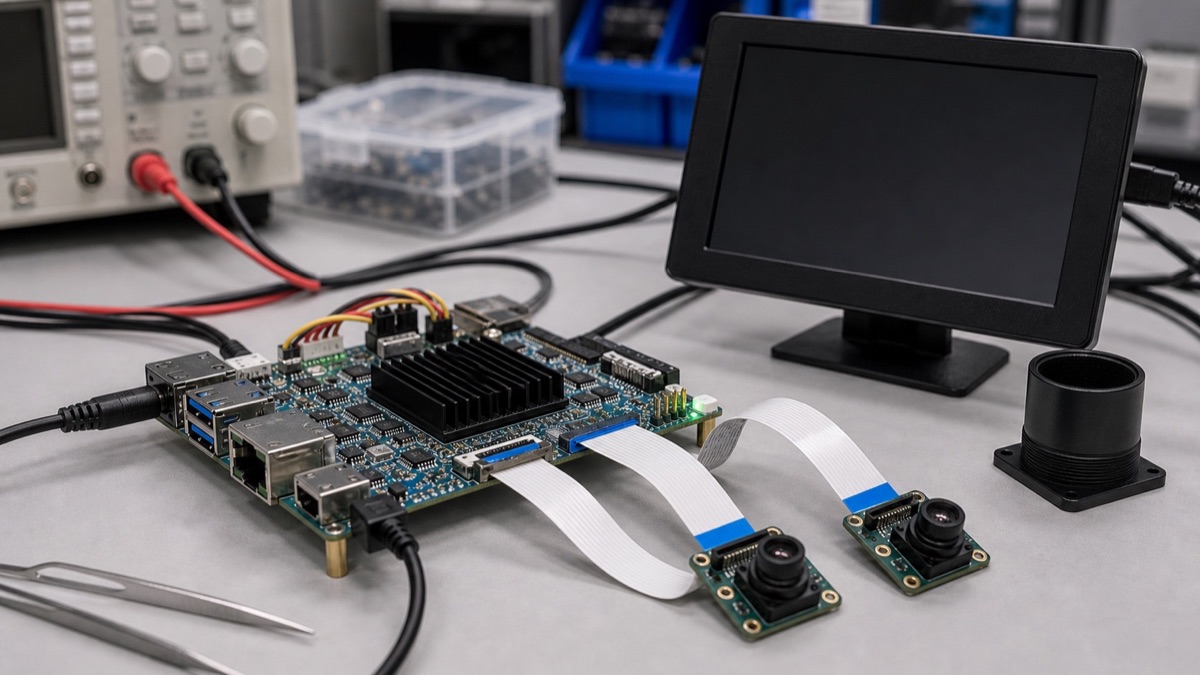

Validation Workflow#

Start with the exact sensor, lens, cable length, lighting condition, resolution, frame rate, and latency target. Validate preview, capture, encode, AI inference if required, suspend/resume, hot restart, and thermal behavior. For Android, test the final application through the camera API, not only the vendor demo. For Linux, test the full userspace stack that the product will ship.

Ask suppliers for validated sensor lists, reference schematics, driver source, ISP tuning process, camera HAL support, and known limitations. A board with a generic camera demo is not enough evidence for a production smart camera, inspection terminal, or video intercom.

Release Decision Criteria#

A camera interface is ready for release only when the final sensor, lens, cable, lighting condition, resolution, frame rate, and application pipeline have been tested together. The team should record startup time, preview latency, image quality, exposure behavior, thermal behavior, and recovery after application restart or system suspend.

For Android, the release evidence should include the camera HAL and final application behavior. For Linux, it should include the V4L2 or media pipeline used in production. A vendor demo with a different sensor is useful, but it is not enough for release approval.

FAQ#

Is MIPI CSI required for edge AI cameras?
Usually yes for built-in camera products, but USB may be acceptable for simpler systems.

Can any MIPI camera work with any SoC?
No. Sensor driver, ISP, lane count, clocking, and BSP support must match.

What should be tested first?
Preview, capture, suspend/resume, thermal behavior, and the final application pipeline.
