MediaTek Genio 1200 Guide#
Quick Answer#
MediaTek Genio 1200 is the Genio platform to evaluate when the product needs a premium AIoT processor with strong application performance, multimedia capability, display support, camera support, and edge AI headroom. It is a candidate for smart displays, AI cameras, interactive kiosks, robotics edge computers, medical terminals, retail systems, video collaboration devices, and high-end Android or Linux embedded products.
Do not choose Genio 1200 only because it is the highest class in the Genio lineup. It makes sense when the workload can use the extra CPU, GPU, AI, video, display, or camera capability. For simple HMI panels or low-cost gateways, Genio 520, Genio 510, Rockchip RK3568/RK3576, NXP i.MX8M Plus, or TI AM62x may be easier or cheaper depending on product priorities.
Product Fit#
| Product Type | Fit | Main Risk |
|---|---|---|
| Premium smart display | Strong | display BSP, GPU smoothness, thermal budget |
| AI camera or vision box | Strong | sensor support, ISP tuning, AI runtime |
| Robotics edge computer | Good | latency, camera pipeline, motor-control partitioning |
| Medical or retail terminal | Good | OS maintenance, certification, peripheral support |
| Basic Android HMI | Usually excessive | platform cost and thermal overhead |
| Industrial gateway | Selective | Ethernet/I/O requirements and Linux maintenance |
Why Genio 1200 Is Considered#
Genio 1200 is positioned for demanding AIoT products, where one processor must handle application logic, display output, camera input, video processing, AI inference, networking, and user interaction. In many designs this replaces a more complex architecture that might otherwise combine a mid-range application processor, separate AI accelerator, video device, and connectivity subsystem.
For an engineering team, the advantage is architectural simplicity. A single high-end embedded SoC can reduce board area and software integration points. For a product team, it can support richer user experiences: responsive Android UI, high-resolution display, local camera analytics, voice interaction, multimedia playback, and edge AI without sending every decision to the cloud.
The tradeoff is that a high-end smart-device SoC brings more integration responsibility. Thermal design, BSP access, camera tuning, AI runtime behavior, security updates, and production flashing must be proven before the enclosure and supplier plan are locked.
Workloads That Justify Genio 1200#
Genio 1200 is most defensible when the product has at least two or three demanding workloads at the same time. Examples include a camera plus AI plus display; dual display plus video conferencing plus local inference; robotics perception plus operator UI; or a kiosk that combines Android applications, scanner input, camera, wireless, and secure updates.
If the application is only a web dashboard on a 7-inch screen, a smaller processor may be more appropriate. If the application is a headless PLC-style gateway, a processor with stronger industrial I/O and lifecycle positioning may be more appropriate. The selection should be tied to measured workload evidence.
Software And BSP Review#
Before committing to Genio 1200, request the exact software baseline from the board or module supplier. The team should know whether Android, Yocto Linux, Ubuntu, or another distribution is supported; which kernel version is used; how the bootloader is configured; which peripherals are validated; and how security patches are handled.
For Android devices, test UI smoothness, graphics acceleration, camera preview, audio routing, suspend and resume, kiosk behavior, device management, OTA, rollback, and factory reset. For Linux devices, test boot time, container support if needed, read-only root filesystem behavior, systemd services, AI runtime installation, camera capture, display stack, and update recovery.
The BSP owner matters as much as the silicon. If the module vendor can fix device tree issues, tune camera sensors, provide display patches, and support field updates, Genio 1200 can be a practical production platform. If support is limited to a demo image, the project risk remains high.
Hardware And Thermal Validation#
Genio 1200-class products should not be validated on an open bench only. The final enclosure, display backlight, wireless module, storage, camera sensors, and power supply all contribute heat. Run sustained tests with the real application, maximum expected brightness, camera enabled, AI model active, network traffic running, and storage writes occurring.
Record CPU temperature, board temperature, enclosure surface temperature, throttling events, frame drops, AI latency, camera exposure stability, and reboot behavior after power interruption. A system that passes a five-minute demo may fail after two hours inside a sealed kiosk or medical terminal.

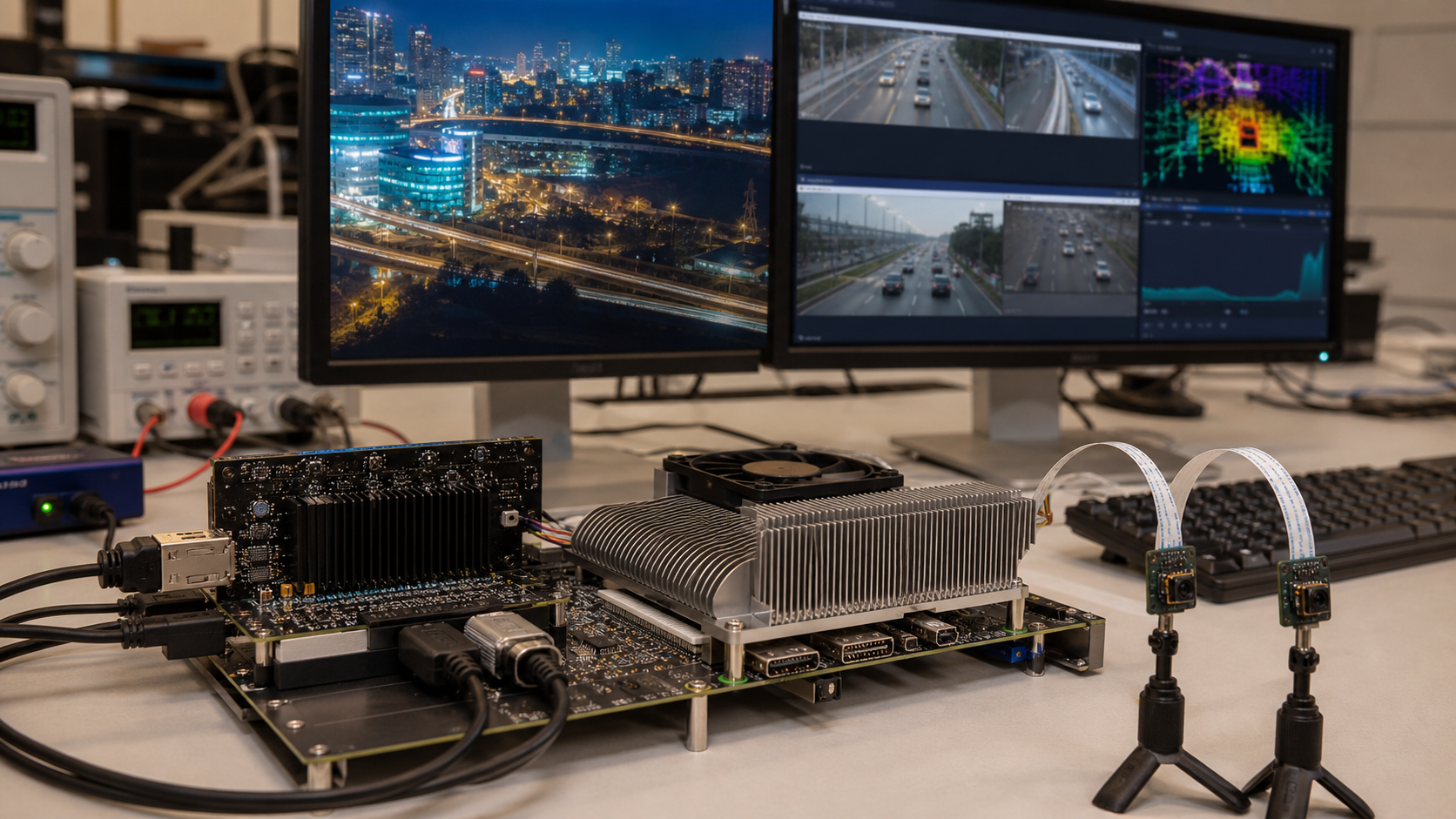

Camera, AI, And Display Concurrency#
The strongest reason to choose Genio 1200 is concurrent workload handling. A premium product may need to preview a camera stream, run inference, render an Android UI, encode video, keep a wireless connection alive, and write logs at the same time. Validate these workloads together, not as separate demos. Separate demos often hide memory pressure, bandwidth limits, thermal throttling, and scheduler conflicts.
For display-heavy devices, test portrait and landscape orientation, animation, video overlay, brightness control, sleep/wake, and external display behavior if used. For AI products, test cold start, model reload, degraded network mode, and worst-case input scenes. The approval test should look like the final user experience, including background services and remote management.
Comparison Notes#
| Alternative | Compare When |
|---|---|
| Rockchip RK3588 | You need high compute and Android/Linux board availability at competitive cost. |
| Qualcomm QCS/QRB | You need premium camera, wireless, robotics, or mobile ecosystem support. |
| NXP i.MX8M Plus | You need industrial Linux lifecycle and moderate vision capability. |
| TI AM62x/AM62A | You need industrial Linux, gateway reliability, or conservative lifecycle. |
| Smaller Genio | The product needs MediaTek software path but not top-tier performance. |
Release Decision Criteria#
Approve Genio 1200 only after the team has a written release baseline. Include exact SoC, SOM or SBC model, board revision, PMIC, memory, storage, camera sensor, display panel, wireless module, BSP version, kernel, bootloader, flashing method, OTA method, recovery path, thermal result, and supplier support contact. Include the reason competing platforms were rejected.
This record is not bureaucracy. It prevents a common embedded failure: choosing a powerful processor but discovering too late that a camera sensor, Android patch level, thermal envelope, or production flashing tool is not ready.
Keep every approval test repeatable.
FAQ#
Is Genio 1200 good for edge AI?
Yes, it is one of the stronger Genio candidates for edge AI products, but the final result depends on model runtime support, memory bandwidth, camera pipeline, thermal design, and supplier BSP quality.
Is Genio 1200 suitable for simple HMI panels?
Usually it is more than a simple panel needs. Compare Genio 520/510, Rockchip RK3568, or NXP/TI options depending on lifecycle and software requirements.
Should Genio 1200 be selected before camera testing?
No. Camera sensor support, ISP tuning, preview latency, encode path, and AI pipeline should be tested early.
