How to Evaluate Android and Linux BSP Quality

How to Evaluate Android and Linux BSP Quality#

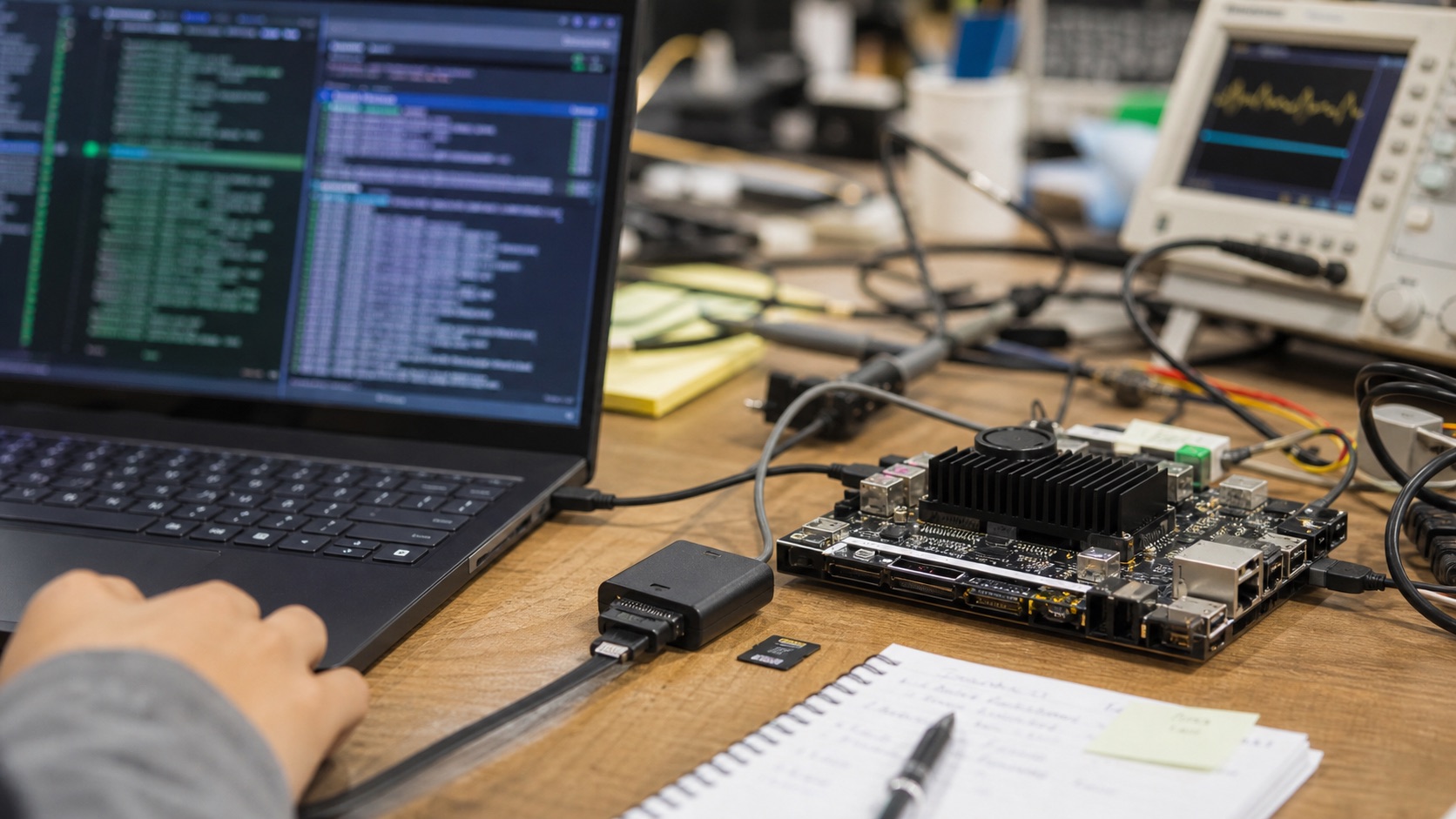

Embedded BSP debugging bench with development board, laptop terminal, serial console, and measurement tools

Why BSP Quality Matters#

A SoC with good hardware specifications can still fail as a product platform if the BSP is weak. BSP quality affects display bring-up, touch behavior, camera support, GPU acceleration, Ethernet stability, suspend/resume, OTA updates, production flashing, recovery, and long-term security maintenance.

For embedded products, BSP quality is not only a developer convenience. It directly affects schedule, field reliability, production yield, and support cost.

Quick Checklist#

  • Does the board vendor provide a clear Android or Linux BSP version?
  • Is the kernel version documented?
  • Are source code access and update policy clear?
  • Are display, touch, camera, audio, Ethernet, USB, and serial interfaces validated?
  • Are flashing, recovery, OTA, watchdog, RTC, and serial console supported?
  • Can the same build be reproduced for production?

Android BSP Evaluation#

Area What to Verify
Android version Version, security patch level, update policy
Display Resolution, rotation, brightness, sleep/wake, HDMI/MIPI/LVDS behavior
Touch Controller driver, multi-touch, calibration, noise, wake behavior
GPU / UI Launcher, WebView, animation, video, and hardware acceleration
Camera Sensor driver, HAL, preview, capture, QR/face workload, latency
Audio Speaker, microphone, codec, echo, volume, and routing
OTA Signed updates, rollback, recovery, partition layout
Factory tools Flashing, test mode, serial console, logs, and repair path

Linux BSP Evaluation#

Area What to Verify
Kernel Version, patch policy, device tree quality, upstream status
Distribution Yocto, Buildroot, Debian, Ubuntu, or vendor SDK
Bootloader U-Boot configuration, recovery, secure boot, boot time
Display stack DRM/KMS, Wayland, Weston, Qt, LVGL, GPU acceleration
Networking Ethernet, Wi-Fi, Bluetooth, VLAN, firewall, VPN, MQTT
Industrial I/O UART, I2C, SPI, GPIO, CAN, RS485, Modbus testing
Updates A/B updates, signed images, rollback, field diagnostics
Production Reproducible builds, flashing scripts, logs, watchdog, RTC

Red Flags#

  • Only demo firmware is available.
  • Kernel version is old and not maintained.
  • Source access is unclear.
  • Display or camera works only on one demo board.
  • OTA update path is not defined.
  • There is no recovery procedure.
  • Factory flashing depends on manual steps.
  • The supplier cannot explain long-term BSP maintenance.

Production Readiness Questions#

  1. Can we rebuild the BSP from source?
  2. Can we flash 100 boards repeatably?
  3. Can the device recover after a failed update?
  4. Can we collect logs from a field failure?
  5. Can we update security patches during the product lifecycle?
  6. Can display, touch, camera, Ethernet, and serial interfaces survive long-run tests?
  7. Can we freeze a production image and reproduce it later?

Platform-Specific Notes#

Rockchip platforms are often attractive for Android SBCs and display-oriented products, but BSP quality depends heavily on the board vendor.

NXP i.MX and TI platforms are often strong for Linux and long-lifecycle industrial products, but they still require board-level validation and Yocto maintenance planning.

Qualcomm platforms can be powerful for Android, camera, AI, wireless, and robotics products, but access, certification, and vendor support must be checked early.

  1. Boot the vendor image and verify all hardware features.
  2. Build the BSP from source.
  3. Replace or modify the device tree for one hardware change.
  4. Run display, touch, network, storage, camera, and serial tests.
  5. Test update, rollback, recovery, and factory flashing.
  6. Run thermal and long-duration stability tests.
  7. Confirm source access, update policy, and lifecycle support in writing.

Evidence To Keep#

Keep the BSP version, kernel commit or release tag, build instructions, flashing log, test image checksum, serial boot log, thermal test notes, and supplier support emails in the project record. These details are not paperwork; they are what let the team reproduce a production image months later.

FAQ#

What is the fastest way to judge BSP quality?
Ask whether the supplier can rebuild the image from source, provide release notes, explain known issues, and demonstrate recovery and update behavior on the exact board.

Is a booting demo image enough?
No. A demo image only proves the board can start. Production BSP quality requires stable drivers, update strategy, factory flashing, watchdog, recovery, security handling, and maintainable source.

Which BSP issues usually appear late?
Camera, display rotation, suspend/resume, GPU/VPU acceleration, OTA rollback, thermal policy, and power loss recovery often create late-stage delays.
